Provide dummy tables
An alternative to letting ehrQL generate a dummy dataset - the output of a dataset definition - is to provide dummy tables, which ehrQL will use as its input to generate the dataset.
You provide dummy tables as a collection of CSV files. You can think of these CSV files as a representation of the underlying database tables holding the EHR data that ehrQL queries.
ehrQL will use the dummy tables as the backend data from which to extract the dataset. You can refer to the table schema reference in the OpenSAFELY documentation for a guide to the available tables and columns.
Generating dummy tables from a dataset definition🔗
Setting up lots of dummy tables from scratch can be tedious. However, we can use ehrQL to help us generate the tables
Under the hood, ehrQl generates dummy datasets by first creating dummy tables, and then running the queries in the dataset definition on them. We can have ehrQL output those dummy tables directly, rather than the dummy dataset.
Using your dataset definition file, create dummy tables and write them to the dummy_tables
directory. In your terminal, run:
opensafely exec ehrql:v1 create-dummy-tables analysis/dataset_definition.py dummy_tables

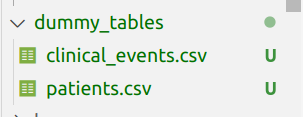

Have a look at the files in the dummy_tables folder; there will be 2 CSV files corresponding to the two tables that this dataset definition uses.
The ehrQL show() function🔗
Now that we have some dummy tables, we can take advantage of the show() function and the OpenSAFELY VSCode extension.
The show() function lets you explore the data in the dummy tables using ehrQL, and look at how your
ehrQL queries affect how the data that is filtered and extracted.
analysis/dataset_definition.py
Update the dataset definition to add a show statement before and after our
definition of events. Here we can have a look at the date column from the full (dummy) clinical events
table, and then the column after we've filtered to just the first event for each patient.
from ehrql import create_dataset, show
...
# show the date column from the original clinical_events table
show(clinical_events.date)
# filter to a patient frame, with the first event for each patient
first_event_date = clinical_events.sort_by(clinical_events.date).first_for_patient().date
# show the date column from the filtered first_events frame
show(first_event_date)
...
Click on the Run button in the bottom right.

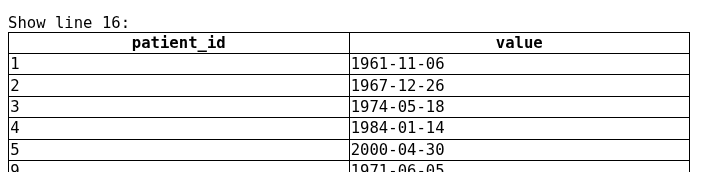

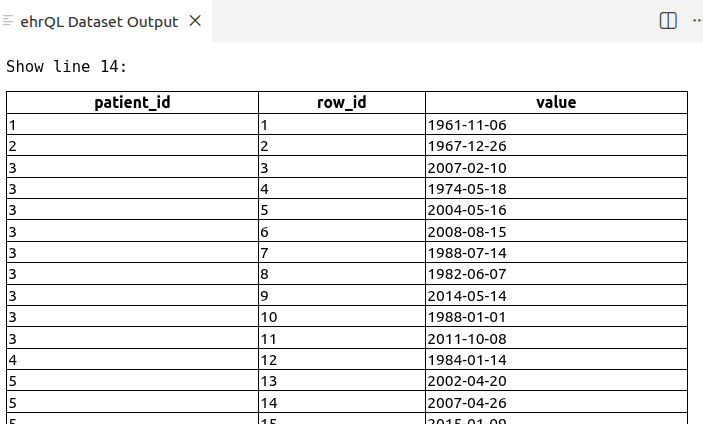

This will open a new panel and display the columns we requested.
(Note that the line numbers correspond to the lines with the show() in your dataset definition file and may not exactly match the screenshots above.)
Running ehrQL with dummy tables🔗
Once you've created some dummy tables, you can then use those tables as the input when you run your dataset definition again. Or you can use them as a starting point to generate more data, or to test your dataset definition is extracting data as you’d expect.
Run your dataset extraction again, this time with the dummy tables:
opensafely exec ehrql:v1 generate-dataset analysis/dataset_definition.py --dummy-tables dummy_tables
Note that this produces the same output dataset as before, because the tables we've created are the same tables that ehrQL generated behind the scenes in order to create the dummy dataset.
Let's check that the dataset definition is extracting patients by age as we expect, by manually changing some data in the tables.
Open dummy_tables/patients.csv and modify the date of birth for the first two patients to make patient 1 too old and patient 2 too young to match our dataset definition:
patient_id,date_of_birth,date_of_death,sex
1,1901-01-01,,unknown
2,2025-01-01,,intersex
3,1970-04-01,,male
4,1945-08-01,,unknown
5,1996-09-01,,unknown
6,1955-07-01,,unknown
7,1979-11-01,,unknown
8,1951-09-01,,unknown
9,1970-06-01,1991-07-08,unknown
10,1969-06-01,,unknown
Re-run the dataset extraction with the dummy tables again, and note that patient 1 and 2 are no longer included:
opensafely exec ehrql:v1 generate-dataset analysis/dataset_definition.py --dummy-tables dummy_tables
patient_id,age,sex,first_event_date
3,49,male,1988-12-06
4,74,unknown,1967-06-01
5,23,unknown,1998-09-03
6,64,unknown,
7,40,unknown,
8,68,unknown,
9,49,unknown,1974-10-17
10,50,unknown,1973-04-05
...
Using ehrQL to create dummy tables to test a dataset definition🔗
Another strategy is to use ehrQL to build the dummy tables you want, and then feed those into your dataset definition to see if it extracts the patients you expect.
Create a new dataset definition file called analysis/dataset_definition_london_adults.py, with the
ehrQL code below.
This dataset definition is intended to extract patients who are aged 18-80 and are in the city of London (MSOA code E02000001).
Warning
There is a deliberate error in this dataset definition. If you spot it, don't worry, we'll be finding it soon!
from ehrql import create_dataset
from ehrql.tables.core import patients
from ehrql.tables.tpp import addresses
min_age = 18
max_age = 80
age = patients.age_on("2024-01-01")
dataset = create_dataset()
dataset.age = age
london_msoa = (
addresses
.where((addresses.msoa_code == "E02000001").is_not_null())
.sort_by(addresses.start_date)
.last_for_patient()
)
dataset.define_population(
(age >= min_age)
& (age <= max_age)
& london_msoa.exists_for_patient()
)
dataset.msoa = london_msoa.msoa_code
If we ask ehrQL to generate dummy tables from this dataset definition, all patients will have MSOA E02000001, because that makes them satisfy the dataset definition.
Run this dataset definition
opensafely exec ehrql:v1 generate-dataset analysis/dataset_definition_london_adults.py
[info ] Building dataset and writing results
patient_id,age,msoa
1,66,E02000001
2,67,E02000001
3,49,E02000001
4,75,E02000001
7,39,E02000001
8,71,E02000001
9,49,E02000001
12,71,E02000001
14,41,E02000001
17,67,E02000001
Output the dummy tables using the dataset definition:
opensafely exec ehrql:v1 create-dummy-tables analysis/dataset_definition_london_adults.py dummy_tables
This outputs dummy tables to the dummy_tables folder; this time there is an additonal addresses.csv table
that is needed for the dataset_definition_london_adults that we've just run. If you take a look at the
addresses table, you'll see that it that ONLY contains null values and the code E02000001 (which is
present for every patient in at least one row).
patient_id,msoa_code,start_date
1,E02000001,1997-11-17
1,E02000001,1991-04-16
1,,1997-05-05
1,E02000001,1961-07-14
2,E02000001,1976-09-19
2,,1979-10-25
2,,1964-07-01
2,E02000001,1972-05-21
2,E02000001,1960-09-18
2,,1956-04-27
2,E02000001,1991-12-09
2,E02000001,1970-06-09
3,E02000001,1993-07-08
3,E02000001,2015-03-14
3,E02000001,1995-11-28
...
But, we want to make sure that our dataset definition successfully extracts patients with MSOA code E02000001 from patients with other MSOAs, and patients who have no MSOA available at all. And we want to check that it can extract patients of the right age from wider data; i.e. does it properly exclude patients who are too old/young?
To do this, let's write a different dataset definition that just produces the tables. This will include the data we want, but also allows for producing patients who have no address data, patients whose MSOA code is different, and patients who are outside the age range.
Create a new file called analysis/dummy_data_definition_london_adults.py.
-
First define the dataset and add an age variable, using the same index date as the previous dataset definition.
from ehrql import create_dataset from ehrql.tables.core import patients from ehrql.tables.tpp import addresses dataset = create_dataset() dataset.configure_dummy_data(population_size=50) age = patients.age_on("2024-01-01") -
Now define some possible MSOAs, including the target "E02000001".
... possible_msoas = ["E02000001", "E02000002", "E02000003", "E02000004"] -
Define an address variable that selects patients who have data in the addresses table, where the MSOA code is one of these possible codes.
1. And define a variable that selects patients who have NO address data:... address = ( addresses .where(addresses.msoa_code.is_in(possible_msoas)) .sort_by(addresses.end_date) .last_for_patient() )... no_address = ~addresses.exists_for_patient() -
Add the age column to the output dataset - this will make sure relevant columns are included in the dummy patient table. We also add the msoa code, just so we can check what's being produced.
... dataset.age = age dataset.msoa = address.msoa_code -
Finally, define our population to include patients of any age, who either have a matching address or no address data at all.
... dataset.define_population( patients.exists_for_patient() & (address.exists_for_patient() | no_address) )
Your final dataset definition file should look like this:
from ehrql import create_dataset
from ehrql.tables.core import patients
from ehrql.tables.tpp import addresses
dataset = create_dataset()
dataset.configure_dummy_data(population_size=50)
age = patients.age_on("2024-01-01")
possible_msoas = ["E02000001", "E02000002", "E02000003", "E02000004"]
address = (
addresses
.where(addresses.msoa_code.is_in(possible_msoas))
.sort_by(addresses.end_date)
.last_for_patient()
)
no_address = ~addresses.exists_for_patient()
dataset.age = age
dataset.msoa = address.msoa_code
dataset.define_population(
patients.exists_for_patient()
& (address.exists_for_patient() | no_address)
)
Generate a dataset from this dummy data definition:
opensafely exec ehrql:v1 generate-dataset analysis/dummy_data_definition_london_adults.py
[info ] Building dataset and writing results
patient_id,age,msoa
1,94,E02000003
2,98,E02000002
3,62,E02000002
4,111,E02000002
5,7,E02000004
7,41,E02000002
8,104,E02000001
9,60,E02000002
10,60,
12,105,E02000002
...
Output these dummy tables:
opensafely exec ehrql:v1 create-dummy-tables analysis/dummy_data_definition_london_adults.py dummy_tables
Now use them to generate a dataset from the actual dataset definition:
opensafely exec ehrql:v1 generate-dataset analysis/dataset_definition_london_adults.py --dummy-tables dummy_tables
Something is wrong!
The dataset produced when we run the dataset definition with our dummy tables is producing patients with other MSOAs. There's a bug in our dataset definition that we need to fix. The output from our dataset definition currently looks like this (note the highlighted lines with unexpected MSOA codes):
patient_id,age,msoa
3,62,E02000003
7,41,E02000002
9,60,E02000002
14,45,E02000001
19,53,E02000003
23,59,E02000004
26,73,E02000002
30,59,E02000003
...
The offending line in analysis/dataset_definition_london_adults.py is:
.where((addresses.msoa_code == "E02000001").is_not_null())
is_not_null() here is incorrect (it's assessing whether the result of the clause
msoa_code == "E02000001"is not null, which is not what we meant). Fix it by changing this line to:
.where(addresses.msoa_code == "E02000001")
Now rerun the corrected dataset definition with the dummy tables.
opensafely exec ehrql:v1 generate-dataset analysis/dataset_definition_london_adults.py --dummy-tables dummy_tables
And verify that our dataset definition is now extracting only the patients who match our criteria:
[info ] Building dataset and writing results
patient_id,age,msoa
7,41,E02000001
14,45,E02000001
19,53,E02000001
26,73,E02000001
38,73,E02000001
43,24,E02000001
47,51,E02000001
51,35,E02000001
56,68,E02000001
Generating dummy tables: prevalence of death from heart failure for hospitalised patients
The following dataset definition that identifies patients who have an ONS death record with an underlying cause of death recorded, and who were hospitalised 6 months before their death.
It also extracts information about where the patients live, and their underlying cause of death (an ICD-10 code). A downstream analysis script will use this data to analyse regional variations in the cause of death, and identify the prevalence of ICD-10 codes for heart failure (I50, I500, I501, I509) by region.
from ehrql import create_dataset, months
from ehrql.tables.core import patients, ons_deaths
from ehrql.tables.tpp import apcs, practice_registrations
study_start_date = "2022-01-01"
study_end_date = "2023-01-01"
died_in_study_period = ons_deaths.date.is_on_or_between(
study_start_date, study_end_date
)
hospitalisation_in_6_months_before_death = (
apcs
.where(
apcs.admission_date.is_on_or_between(
(ons_deaths.date - months(6)), ons_deaths.date
)
)
.sort_by(apcs.admission_date)
.last_for_patient()
)
hospitalised_date = hospitalisation_in_6_months_before_death.admission_date
# registration info at ons-registered date of death
registration = practice_registrations.for_patient_on(ons_deaths.date)
dataset = create_dataset()
dataset.region = registration.practice_nuts1_region_name
dataset.cause_of_death = ons_deaths.underlying_cause_of_death
dataset.date_of_death = ons_deaths.date
dataset.hospitalised_date = hospitalised_date
dataset.define_population(
died_in_study_period
& hospitalised_date.is_not_null()
& ons_deaths.underlying_cause_of_death.is_not_null()
)
First copy this ehrQL code into a new dataset definition file, try running it look at the dummy dataset it produces.
As the underlying cause of death is not used as a filter in the dataset definition, ehrQL produces random strings of characters as cause of death, rather than valid ICD-10 codes. This means that the dummy dataset will not be sufficient for downstream analysis that wants to categorise the data by ICD-10 codes representing cause of death.
Write a dummy tables definition and use it to create dummy tables that can be used as an input to this dataset definition to produce a dataset with valid hospitalisation dates and ICD-10 codes.
Your dummy tables should include a range of ICD-10 codes, in order to allow downstream analyses to categorise them and calculate prevalence. It should also include hospitalisation dates and death dates outside of the dataset definition boundaries to ensure that they are correctly filtered out.
Note that the original dataset definition does not need to be modified in any way.
Next: Limitations of native ehrQL dummy data
